After an extensive development and testing program we made this front adjustable camber arm available to everyone. The car was 3D laser scanned, the wishbone was CAD developed, we have tested the CAD model with FEA (Finite element method) and performed road going tests so you can now buy our adjustable caster arm.
Benefits:
- Easy camber adjustability with turnbuckle jack screw.
- Roll center adjustability with spacers
- Increased strength and rigidity for improved handling performance
- No rubber to bend, you will not lose the geometry set when doing alignment
- You do not need to change the whole arm in case of wear of the ball joint. We use easily available replaceable high quality spherical bearings and uniballs
Features:
- This is a bolt-in kit, no modifications necessary to the car
- Wishbone comes pre assembled, with initially predefined length
- Robust pin and adjustment sleeve machined out of high strength steel
- CNC machined arm out of 6082 t6 aluminum
- BIG high quality spherical bearings and uniballs with increased articulation capability. Both manufactured in Europe not China.
- Delivered with uniballs rubber boots for dust and water protection, which provides even better longevity
- Robust, adjustable xenon sensor mounting
- Includes all necessary parts to mount on the car
- Can be used with OEM knuckle, subframe and xenon sensor
When You correct Your roll center it is strongly recommended to add about the same height spacers on the front toe link to prevent from excessive front bump steer. To do that You need our bump steer adjustable tie rod ends, which You can find here -> LINK.
What’s included:

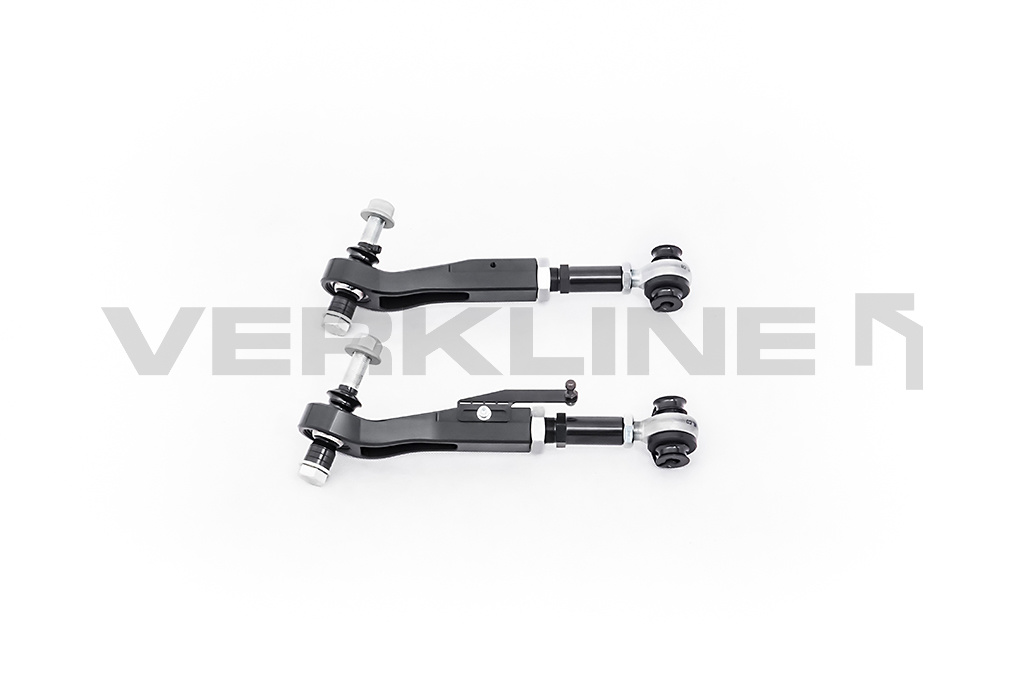

- Two (pair) CNC billet 6082 aluminium front wishbones (camber arms)
- Two (pair) CNC machined Cr-Mo upright pins
- Two (pair) CNC machined Cr-Mo adjustment turnbuckles
- Thin locking nuts
- High quality motorsport spherical bearings and uniballs
- Lightweight aluminium spacer sleeves for assemble of the arm in the front subframe
- Set of pin spacers for roll center adjustment
- Adjustable xenon sensor mounting for the ride height sensor
- Rubber uniball boots for dust protection
- Printed install instructions
Used in:
– Toyota Supra A90
– Toyota Supra A91
– BMW Z4 G29
Notice: Unfortunately in Toyota Supra anti roll bar comes very close to the front lower control arm. If there are problems with their clearance it is possible to adjust the length of ARB end links and/or reducing caster angle. Another solution could also be an aftermarket ARB with a shorter arm (distance between ARB axis and end link mounting hole).
Notice2: Sold for off road, track and racing applications only. Mounting the wishbone may increase some noise, vibration, and harshness (NVH) in the car. We strongly advice to mount the subframe in qualified and experienced workshop.
